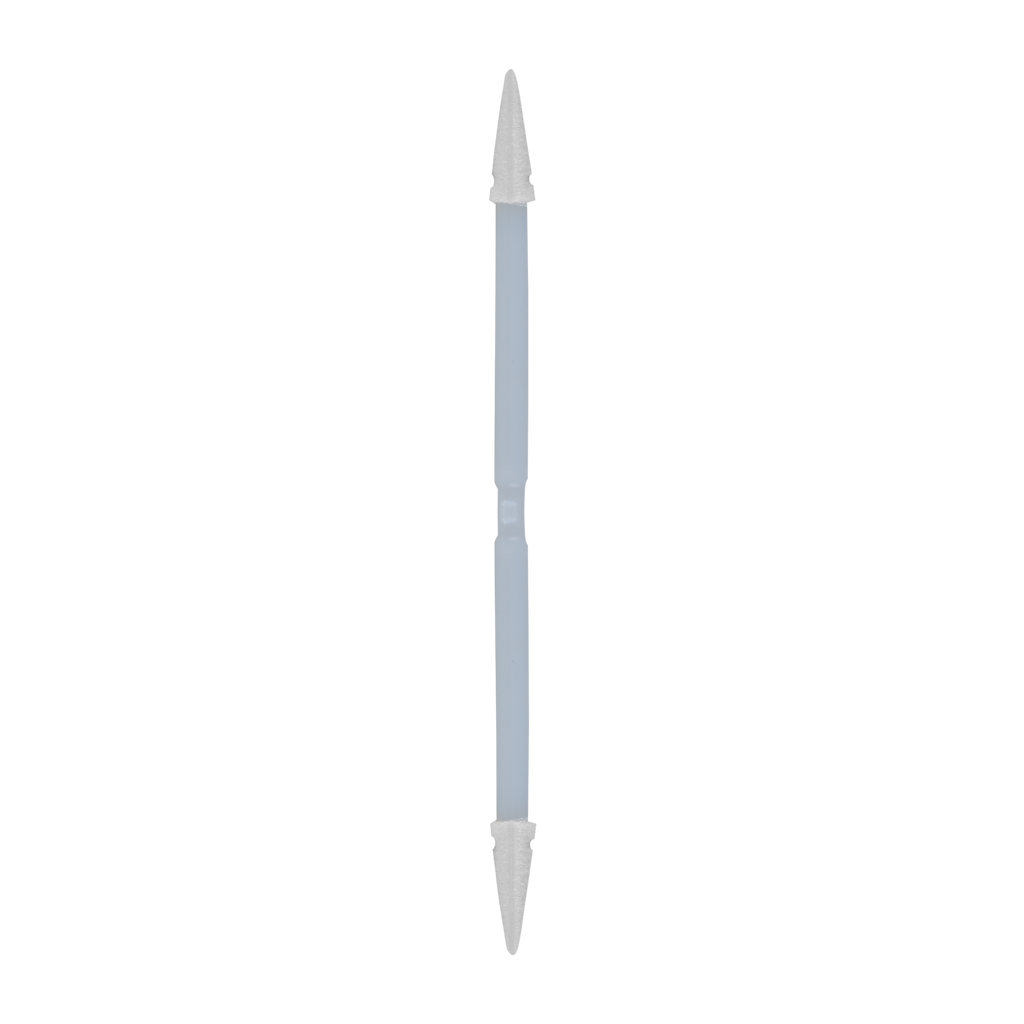

The ESD cleanroom swab with dual-point design has been developed for precise cleaning tasks in ISO-7 classified cleanrooms (Cleanliness Class 10,000). With its controlled foam structure, electrostatic discharge capability, and defined dimensions, this swab enables effective and reproducible cleaning of sensitive components, hard-to-reach openings, and delicate surfaces.
Properties
-
Suitable for ISO-7 cleanrooms (Cleanliness Class 10,000) – defined for controlled environments
-
ESD-safe to minimize electrostatic charge and protect sensitive components
-
Dual-point design for effective cleaning surface at both ends
-

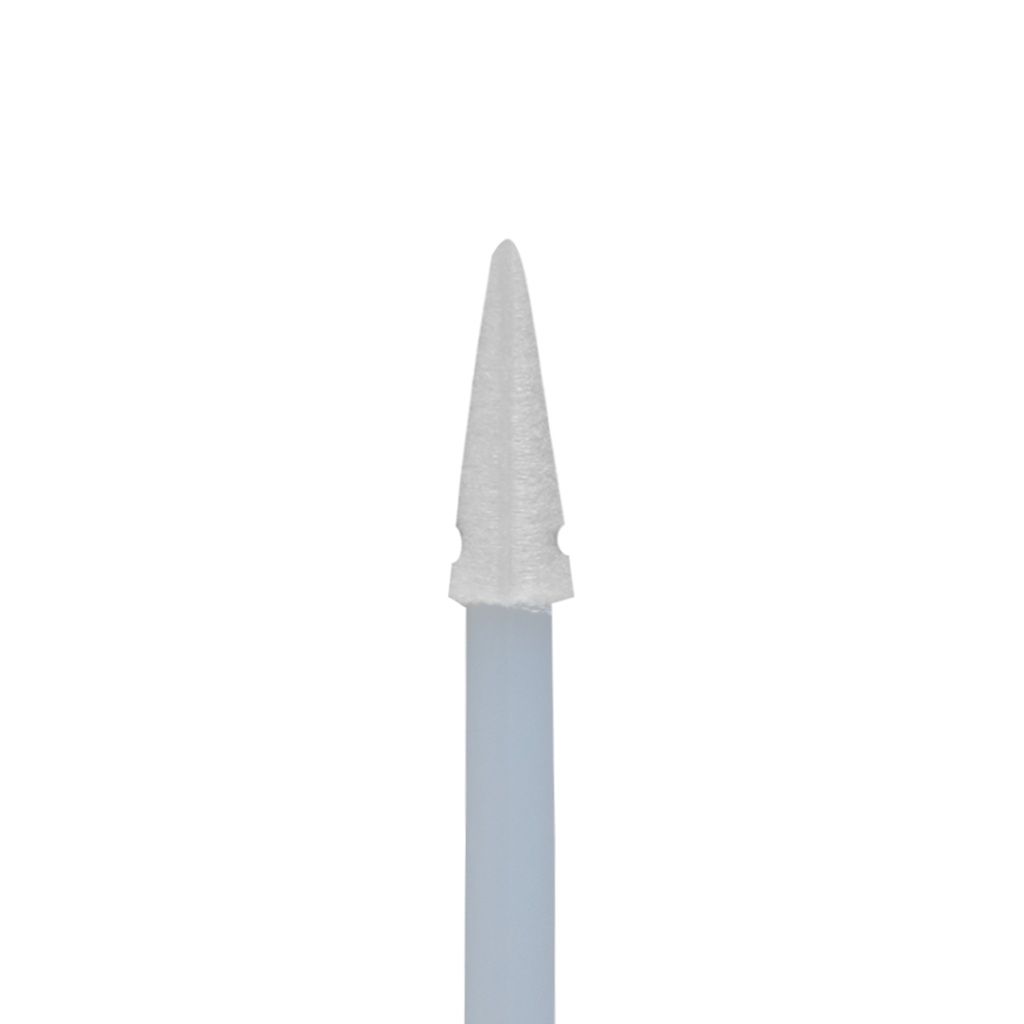

100 ppi polyurethane foam with controlled pore structure for efficient particle capture
-
Thermally bonded foam head – no adhesive residues
-
Low particle and fiber release for reduced contamination risks
-
Shape-stable shaft for precise manual application
-
Compatible with IPA and common cleaning media
Dimensions of the swab
| Feature |
Dimensions |
| Total length |
74.8 mm |
| Tip length |
11 mm |
| Tip diameter |
3.5 mm |
| Shaft diameter |
2.4 mm |
Application areas
-
Precision cleaning in ISO-7 / Class 10,000 cleanrooms
-
Removal of contaminants in tight areas and joints
-
Cleaning of connectors, contacts, and precision parts
-
Detail cleaning during assembly and inspection processes
-
Removal of fine particles, solvent residues, and lubricants
Packaging

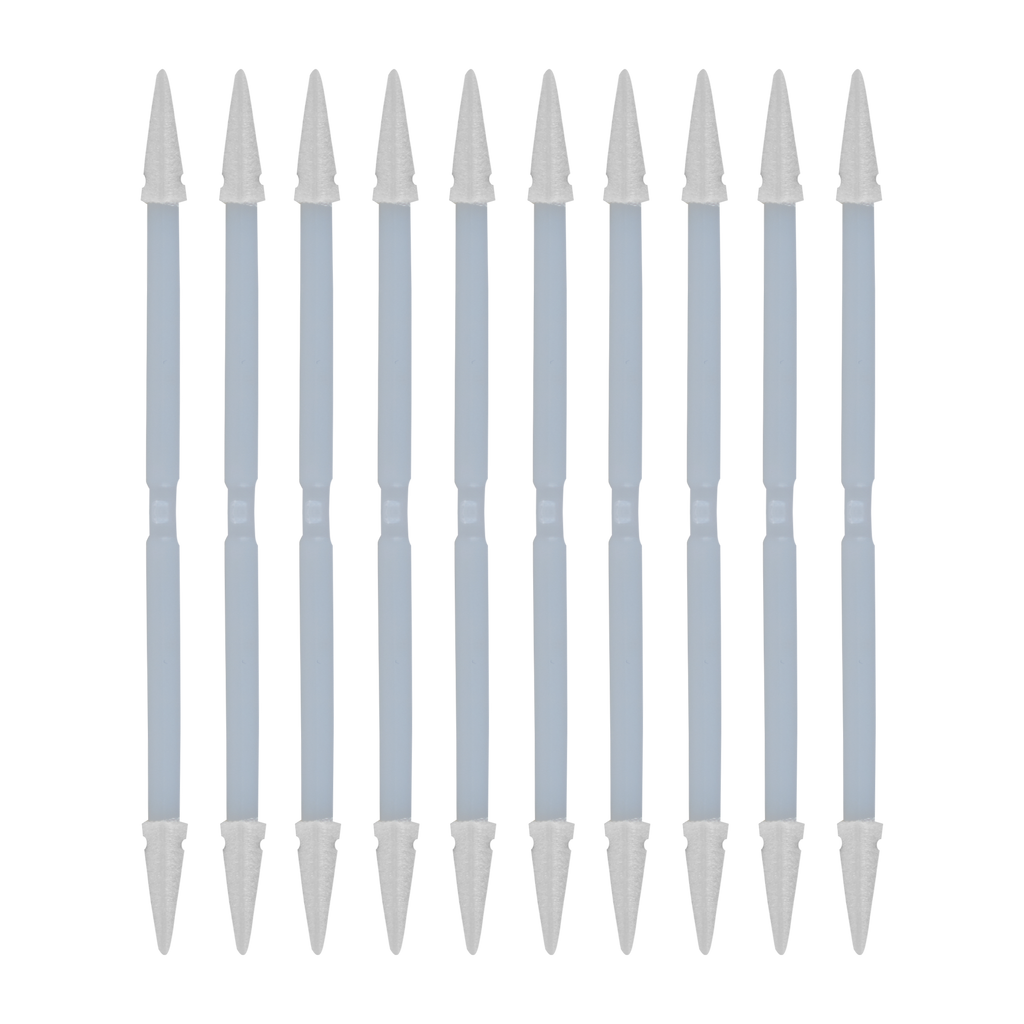

The cleanroom swabs are delivered in a packaging unit of 100 swabs per pack. The packaging is designed to maintain defined cleanliness conditions until removal and to protect against contamination.
GPSR Manufacturer Data: DS SafetyWear Work Protection Products GmbH, Im Rohnweiher 14, D-53797 Lohmar
