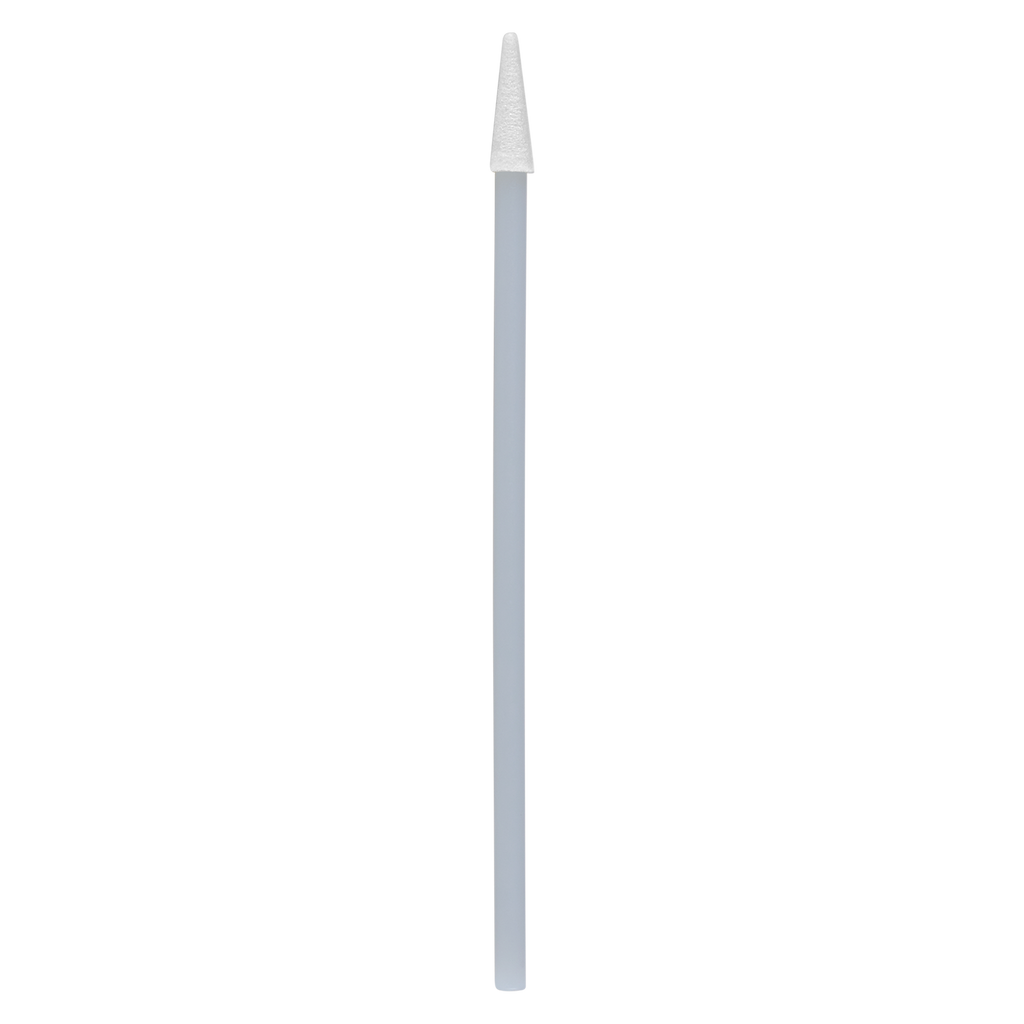

This ESD-capable cleanroom swab has been designed for precise cleaning processes in highly classified cleanrooms (ISO 4 / Cleanliness Class 10). Due to its defined geometry, controlled electrostatic properties, and extremely low particle release, the swab is ideal for pinpoint cleaning tasks on sensitive components and hard-to-reach areas.
Properties
-
Suitable for ISO-4 cleanrooms (Cleanliness Class 10)
-
ESD-safe for controlled reduction of electrostatic charge
-
Extremely low particle and fiber release
-
Low-lint design for critical cleanroom applications
-
Precision tip for tight spaces and delicate structures
-
Shape-stable shaft for controlled pressing pressure
-
High cleaning accuracy due to homogeneous material structure
-
Chemically compatible with IPA and common cleaning agents
Dimensions of the swab
| Feature |
Dimensions |
| Total length |
77 mm |
| Tip length |
11 mm |
| Tip diameter |
3.2 mm |
| Shaft diameter |
2.4 mm |
Application areas
-
Precision cleaning in ISO-4 cleanrooms
-
Cleaning of micro-components and precision mechanical parts
-
Connectors, contacts, and sensor areas
-
Optical components and sensitive surfaces
-
Difficult-to-access areas with the highest purity requirements

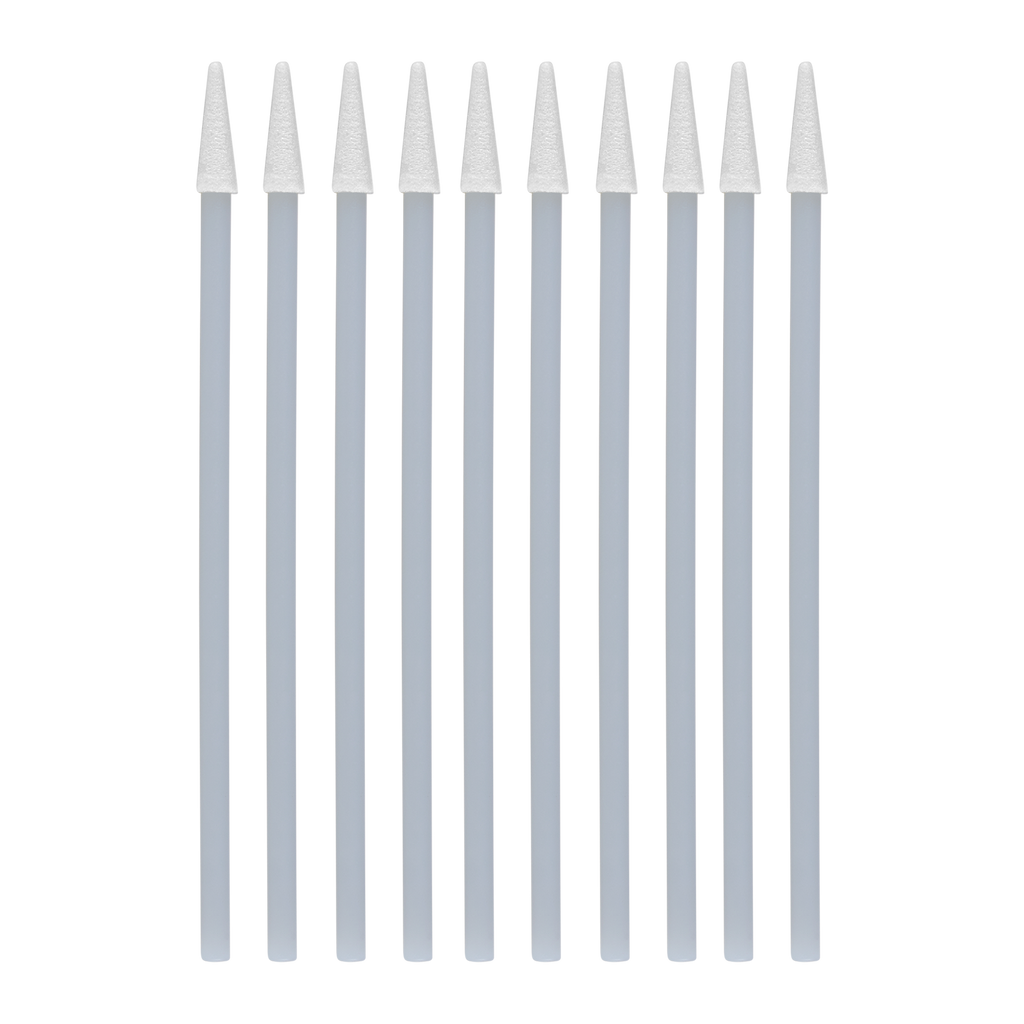

Packaging
The cleanroom swabs are packaged for cleanroom use and are delivered in a packaging unit of 100 swabs per pack. The packaging allows for low-contamination retrieval and protects the product during transport and storage.
GPSR Manufacturer Data: DS SafetyWear Work Protection Products GmbH, Im Rohnweiher 14, D-53797 Lohmar
